KFA2

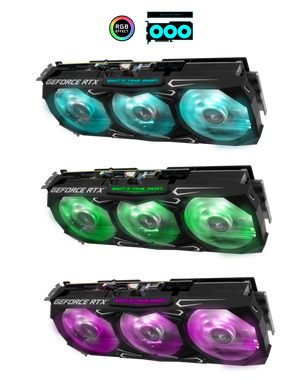

Nvidia Geforce RTX 3080 SG (1-click OC) | 10GB GDDR6X

Free Next Day Delivery & 14-Day Returns

Description

The all-new KFA2 Serious Gaming Edition has equipped with 1-Clip Booster, which can be installed at the back plate and it is the precision and quality that win. When the fan is at the back the PCB is in fact much shorter than the cooler and the key is to allow air to flow as easy as they could, therefore KFA2 built larger holes that allows air to flow through to fulfill the first requirement.

Apart from that, the advantage of adding a fan on the back plate, the 1-Clip booster fan design sucks the air out instead of blowing the air in, creating a technically-correct push-pull cooling effects. When this additional fan is used, it can achieve better performance as if a GPU running with a normal back plate.

Key Features

  • ​This GeForce RTX 3080 graphics card with LHR (lite hash rate) delivers 43 MH/s ETH hash rate (est.).
  • 2nd Gen Ray Tracing Cores
  • 3rd Gen Tensor Cores
  • Microsoft® DirectX® Ultimate
  • GDDR6X Graphics Memory
  • NVIDIA DLSS
  • NVIDIA® GeForce Experience™
  • NVIDIA G-SYNC®
  • NVIDIA GPU Boost™
  • Game Ready Drivers
  • Vulkan RT API, OpenGL 4.6
  • DisplayPort 1.4a, HDMI 2.1
  • HDCP 2.3
  • VR Ready

Specifications

GPU Engine Specs:

  • CUDA Cores 8704
  • Boost Clock (MHz) 1710
  • 1-Click OC Clock (MHz) 1725 (by installing Xtreme Tuner Plus Software and using 1-Click OC)

Memory Specs:

  • Memory Speed 19 Gbps
  • Standard Memory Config 10GB
  • Memory Interface Width 320-bit GDDR6X
  • Memory Bandwidth (GB/sec) 720

Feature Support:

  • PCI-E 4.0
  • Windows 10 64-bit, Linux 64-bit

Fan Feature:

  • 3*92mm
  • Fan stop @ Idle (All Fan)

Display Support:

  • DisplayPort 1.4a x 3, HDMI 2.1

Dimensions:

  • Dimensions(with Bracket): 329*130*61mm
  • Dimensions(without Bracket): 317*113*61mm

System Requirements

  • PCI Express-compliant motherboard with one dual-width x 16 graphics slot
  • System Space for 3-slot card required
  • 2 x PCIe 8-pin supplementary power connectors
  • Minimum 750W or greater system power supply
  • 32GB system memory recommended)
  • Microsoft Windows 10 64-bit (Build 2004 or later recommended) or Linux 64-bit
  • Clip on fan is 22mm X 98mm in height and length and is 192mm away measured from the graphics card bracket, please check your motherboard for compatibility before installation
